Erich Schultz Finds A Byers CR90 – The Analysis and “Carchaeology” Begins…

Hi Gang…

When we discuss Jim Byers cars we normally think of the car that John Bond, owner of Road & Track Magazine, called “the most beautiful sports car in the world.”  That is, the Byers SR-100 that graced the cover of Road & Track magazine back in February, 1957.  Not the case with today’s story…we’re talking “Byers CR 90” – a whole different animal.

Jim Byers built both SR 100 and CR 90 bodies – and a limited number of completed cars too.  By the way…”SR” stands for “sports roadster” and “CR” stands for “competition roadster” – terms both created by his friend and former partner Dick Jones of Meteor fame.

Byers also built custom bodies and we’ll discuss those in the future as well here at Forgotten Fiberglass.   But today’s story focuses on a recent acquisition by west coaster Erich Schultz – a recently found Byers CR 90 body.  The body was found in Southern Illinois by Forgotten Fiberglassateur Jim Walker, who passed the info on to myself who passed it on to others.

The Byers CR90 body recently arrived at Erich’s home in the Los Angeles, California area, and Erich was kind enough to send in some photos and share his thoughts on what he was able to historically determine after closely examining the CR 90 body.  Think of is as a crime scene “CSI” type of report by Erich Schultz.

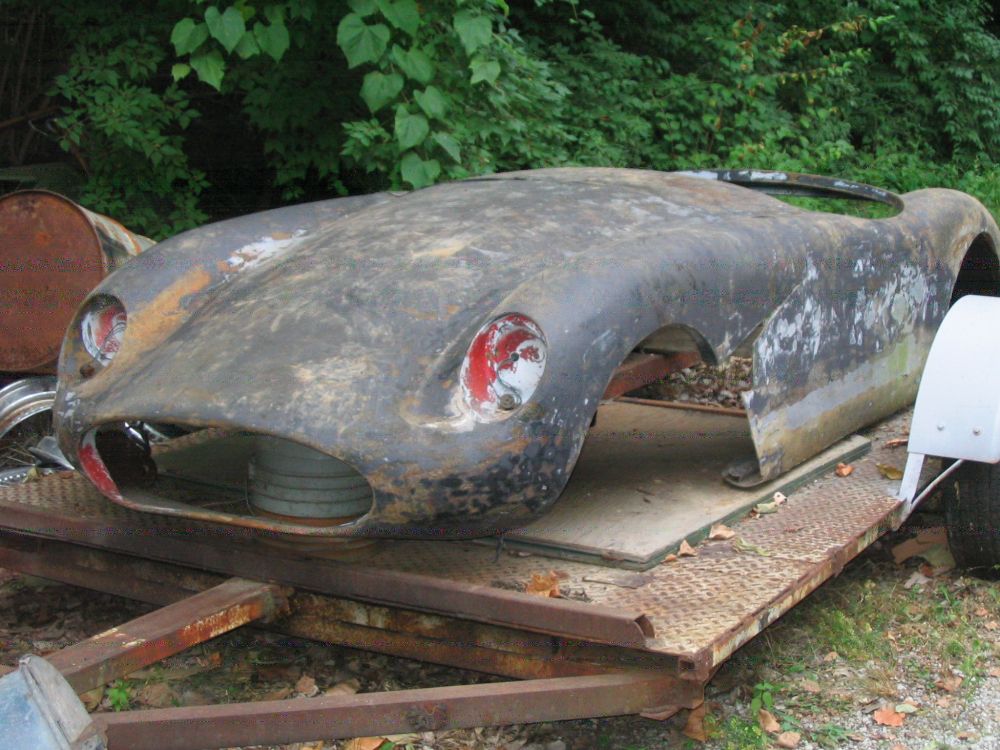

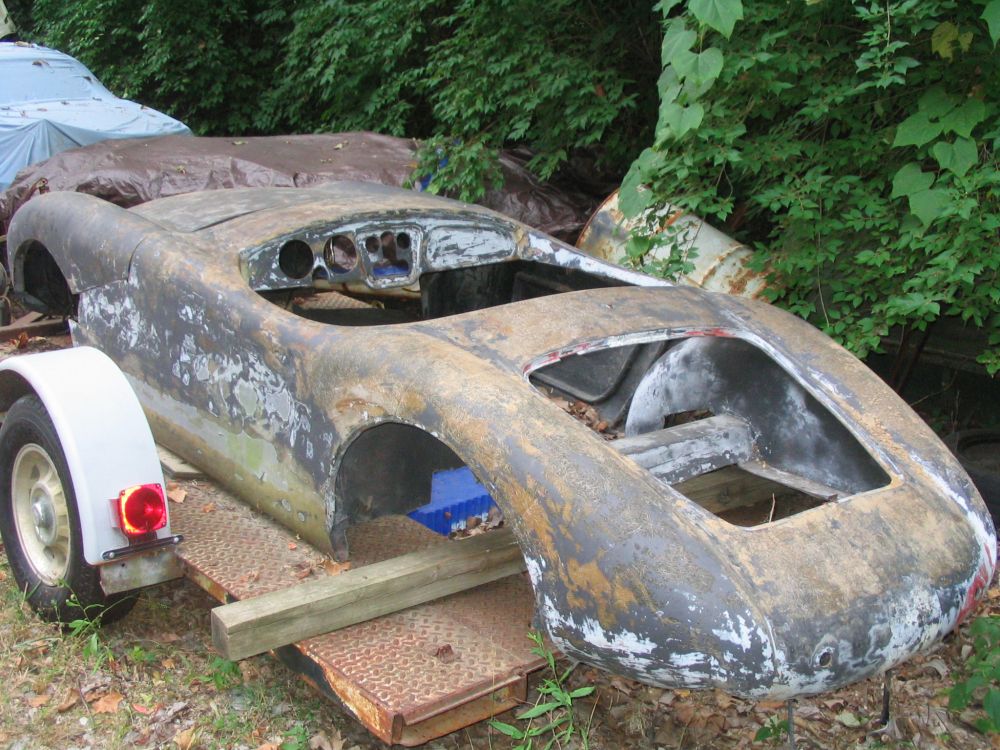

The two photos below show the body as found before it arrived at Erich’s home.

IMG_0551

IMG_0552

Let’s see what Erich had to say after he had a chance to review the body for detail on its history.

Erich Schultz Thoughts on His Byers CR 90 Body:

Hi Geoff,

Recently I purchased a Byers CR90 that surfaced in Southern Illinois.  It just arrived at my shop in Pasadena, and I viewed it in person for the first time.  Here’s what I observed.

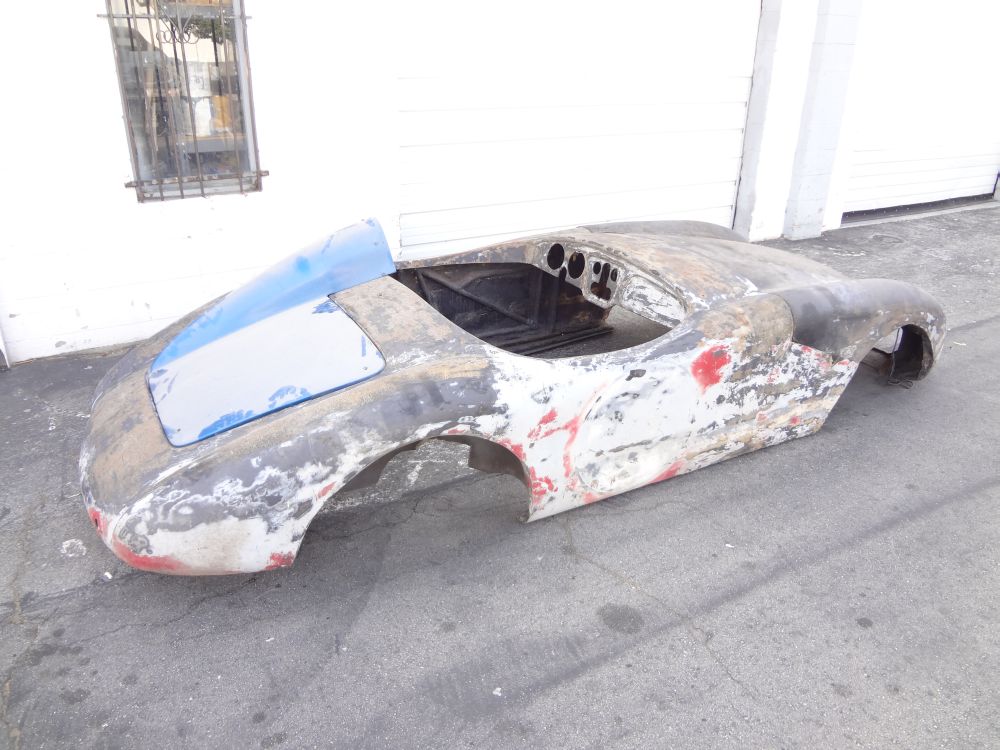

The front end of this particular CR90 has has been modified.  It has a flip up style hood like an E-Jag or TVR instead of the conventional style hood found on the stock CR90 body.  The body has been sanded mostly down to the glass, but remnants of the original paint remain. The car was originally painted red. It had a large white meatball on the hood and large white meatballs on the door area on both sides (the doors are not cut in).

Byers CR90 001

The meatball on the hood was 26″ in diameter and the meatballs on the doors were 20″ in diameter. The car also had a white racing stripe down the center. The stripe was 8″ wide.  I think the flip up hood, meatballs and racing stripe all provide conclusive evidence that this CR90 was a race car.  I also think that it should be easy to identify this car in vintage pictures from its unique hood and markings.   Hopefully someone reading this story will find a photo of the car in an old publication and help us to identify it.

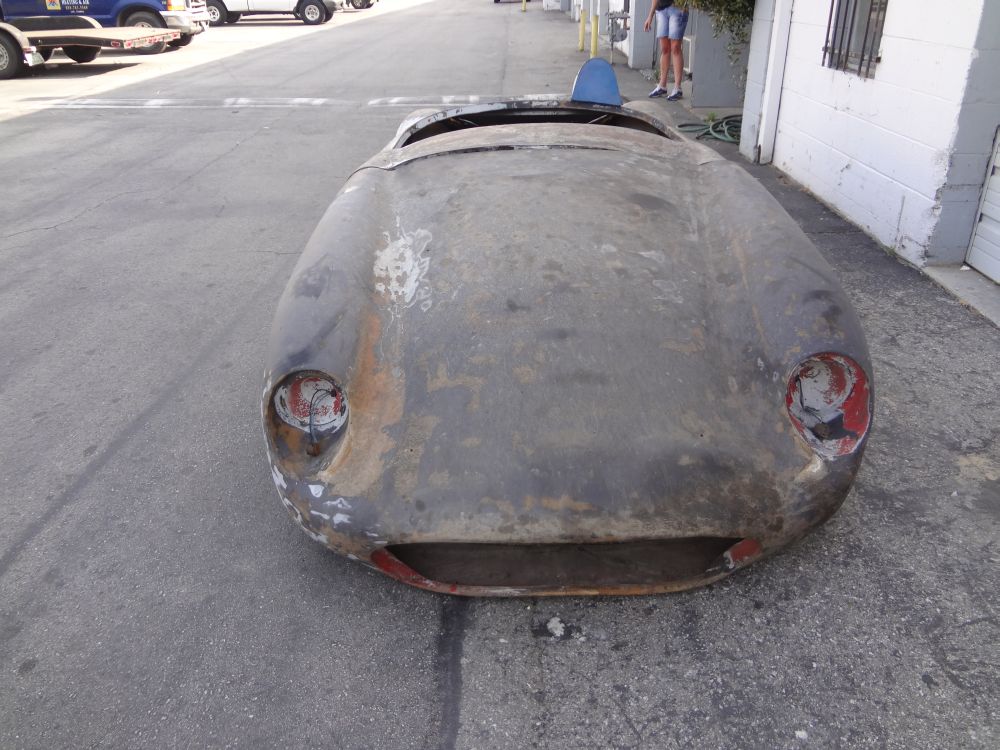

I pulled some measurements from the car. As one would expect, the Byers CR90 has 90″ wheelbase, but the shape of the wheel arches will allow for a plus/minus 2″ difference in wheelbase.  I also measured a 48″ front track and 47″ rear track at the apex of the fenders.  An 88.1″ Triumph TR4 chassis with a 49″ front track and 48″ rear track would fit perfectly in the CR90.  In spite of the slightly shorter wheelbase of the Triumph, it would still appear as if the wheels are centered in the wheel arches.  This seems to me to me to be the ideal donor for a Byers CR 90.

Byers CR90 009

Furthermore, from the shape of the glass in the trunk area, I think this car may well have had a TR chassis.   However, MGTD, TF, and MGA chassis’ could all be adapted with only slight modifications to the CR90 body as well.  Additionally, a custom tubular chassis could be used.

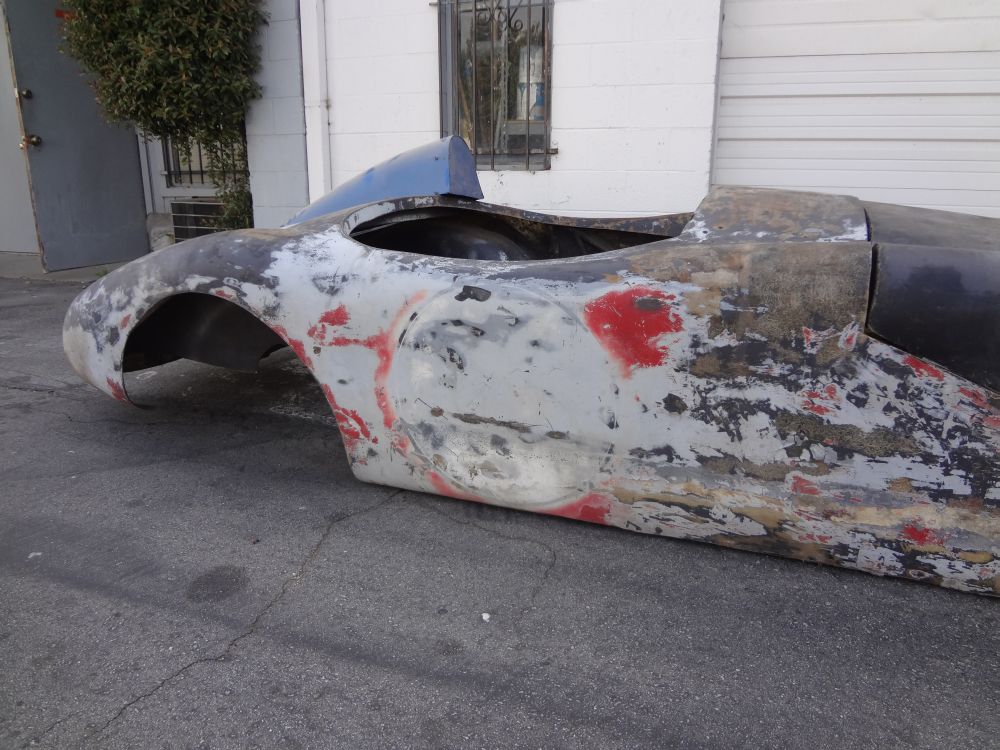

We know that Jim Byers modified a Devin body to create the plug and mold for the CR90.  I have two Devin specials here as well and was able to make some side by side comparisons. Devins came in 26 different size configurations.  I have Devin “J” and “U” bodies with 92″ and 100″ wheel bases respectively.  Though the CR 90 is shorter than my Devin bodies, it is much deeper in section.   My Devin bodies are both 17″ tall from the bottom of the rocker to the top of the door. The Byers is 24″.

Byers CR90 010

I sit mostly above the Devins, but I sit completely enclosed in the Byers. The nose of the Byers is both shorter in length and taller in section than the Devins, which have a somewhat flattened appearance due to being  adapted directly from the diminutive Italian Ermini.  My Byers body arrived missing the trunk lid. I tried fitting one of my Devin trunk lids. It was an exact match.

While I love the look of all the non “SS” Devin bodies, overall, I think the Byers CR 90 is even prettier. I think the changes Jim Byers made to the Devin when he adapted it into the CR 90 improved the overall proportions and the nose in particular. Jim also made the CR 90 better for packaging engines and drivers.

Summary:

Great analysis Erich and thanks for sharing your thoughts.  It’s this kind of detail and comparison that will help us understand the differences between each of the car bodies and the advantages that some have over others.  Just the kind of story we love to see here at Forgotten Fiberglass 🙂

Hope you enjoyed the story, and until next time…

Glass on gang…

Geoff

——————————————————————–

* Click on the following link to view all stories on:  Byers Sports Cars

——————————————————————–

* New Feature: To post your comments and thoughts about this story, scroll down the page and post your information in the section titled “Leave A Reply.”  Your name and e-mail address will be required, but only your name will appear – not your e-mail address.

* Click here to visit the Forgotten Fiberglass Forums and post your thoughts about vintage fiberglass cars.

* Click here to review the “Forgotten Fiberglass Vision Statement” as well as our “Approach to Research

* Click here to listen to our Podcast led by Todd Ruel of Gone Autos

* Click here to visit our Forgotten Fiberglass Facebook page

* Don’t Forget: We appreciate any and all donations to our Forgotten Fiberglass website.  Your donations help defray production costs.  To make a donation, look for the “Support Forgotten Fiberglass” box at the bottom right of our website and click on the word “Donate”.  All contributions help make “Forgotten Fiberglass” the best it can be.

——————————————————————-

Click on the Images Below to View Larger Pictures

——————————————————————-


Comments

Erich Schultz Finds A Byers CR90 – The Analysis and “Carchaeology” Begins… — 7 Comments

  1. ~ Erich Schultz – thanks for a concise description. can any old numbers be seen to help identify in track photos? i am surprised how much better i like it with the added section height. huge bonus; the Devin rear hatch is a slip-fit, neat.

  2. This is a very pretty car… While a TR3 chassis would probably be more period correct, a fussy, underpowered antique powertrain could be replaced with a new one built to modern specs, but fitted with some vintage Hallibrand knockoff alloys (like a Scarab) to keep it looking period.

    Impertinent question: could this body be fitted to one of those shop-built chassis produced for the many Cobra kits…. Geeez… I Really like the shape of this car… Not sure about the headrest fairing…. might look better on a longer version of the car…. Did I say that I really like the look of this car???? I have never understood why a hundred companies build Cobra bodies yet few other cars are replicated… Well this one is my choice. Imagine a new one fitted out like a high-end Cobra replica… Brand new, it could command a place on the lawn at Pebble Beach….

    Someday, when Geoff is updating the third printing of his book, all of the Forgotten Fiberglass of the new century will be Cobras and ’34 Fords that look like the ZZ Top “Eliminator” car…

  3. Hi Rick, Thanks for your comments. Jim Byers offered the CR90 body from 1957 to 1964. Triumph made the TR3 from 1955 to 1962 and the TR4 from 1961 to 1965, so either model would be an absolutely period correct donor for the CR90. However, the TR3 was considerably narrower than the TR4. The TR3 had a front track of only 45″ and a rear track of 45.5″, making it somewhat less than the ideal donor car. The MG TD, TF, and MGA all have a 94″ wheelbase which is 4″ longer than the Byers. An early MGB would be period correct and it has a 91″ wheel base and good track dimensions as well, but it is unibody and there is no donor frame. So I will stand by the TR4 as the ideal donor canidate for a CR90 if one is to use a chassis in basically stock form. Further, the TR4 has a 2.2 Liter motor that is pretty robust and more powerful compared with other four cylinder cars of the period. But it sounds like you would prefer a 215 cu. in. all aluminum Buick V8. I actually have one ready for this car.

    Finally, to answer your question a good fabricator could build a bespoke state of the art chassis for the CR90 and conversely a good fiberglass guy could adapt the body to an off the shelf Cobra replica chassis. Just bring your wallet.

  4. Congratulations, the CR90 is my dream car. I was pondering the chassis question a while ago and came to the same conclusion about the Cobra replica chassis. You might need to trim the corners of the firewall. With circa-1960 correct tires, the track is pretty close. You might need to play with offset, though. Since the chassis is an adaptation of the AC Ace/Tojeiro, you can make a case for being period-correct for vintage racing, but check before you leap.
    As far as identity, it’ll be pretty tough to pin down without either the chassis or name of a driver. One thing that may narrow it down is the uncut doors. The SCCA GCR (rulebook) required a functioning door as late as 1962. (I couldn’t find any midsixties GCRs to check them out.) This may point to a history with one of the independent sports car racing councils.

  5. I have a byers and it has been put on a Ford 51 frame with a 57 corvette motor.
    The mods took place in Lawrence KS by a fellow in the early 60’s This was when I was riding a minibike in my parents back yard.
    I got it about 15 years ago at the Lawrence swap meet and the title reads ford 51 roadster.

  6. The GM 215 fits very well into a TR chassis. They can be bolter up to a newer 5 speed with all factory parts. The u-joint is a common Chevy one and will connect to the TR rear-end. These engines go in TDs through MGAs, but they all have a 93.5″ wheelbase. The Triumph frame is underslung in the rear lowering the CG compared to the MGs. TR6s came with 72 spoke wire wheels – much better for the V8s power. They fit right on the TR3 splines. Rack an pinion steering from a TR4 or 250 can be fitted to the TR2/3 chassis.
